high-quality metal cladding
We offer well-designed, effective metal insulation jacketing that guarantees high resistance to extreme temperatures, and protects against moisture and corrosive conditions. The cladding using PSMR can be applied to all kinds of surfaces and materials, including aluminium and stainless steel.
Aluminium cladding with pSMR
Top of the line insulation
PolySurlin Moisture Retarder (PSMR) is a coating applied to aluminium cladding to form a moisture barrier that helps the metal to withstand very harsh conditions such as high degrees of temperatures and wide changes in humidity between the interior and the exterior.
Paragon uses ASTM B209 standard for all our aluminium insulation jacketing. This standard helps engineers to find out the right jacket type for aluminium cables and also acts as compliance for aluminium jacketing. The composition of the alloys we use for aluminium jacketing are ASTM B209 compliant while the mechanical properties are B 209 compliant.
PSMR coating can be used to cover straight pipes, elbows and fittings, even vessels and equipment. The ASTM E84 must have flame or smoke less than 25 per 50 square foot while the pinhole barriers should be less than 5 per 50 square feet. The thickness may vary depending on the NPS and insulation rigidity. It should not have any visual defects. Emittance targets should be either painted or film-coated.

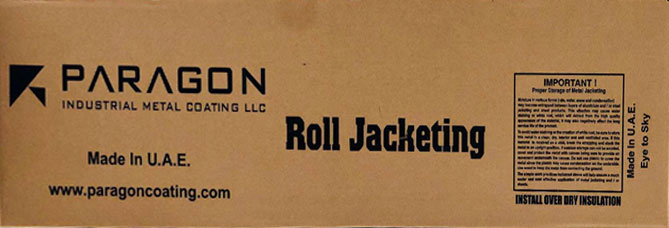

Aluminium cladding packed in coils
Aluminium cladding with psmr: Finishes
Our aluminium products used for cladding purposes are provided in Smooth, Stucco, and Corrugated finishes. Each of these can also be packed into 100ft coils for easy transportation.
Aluminium cladding sheets - smooth finish

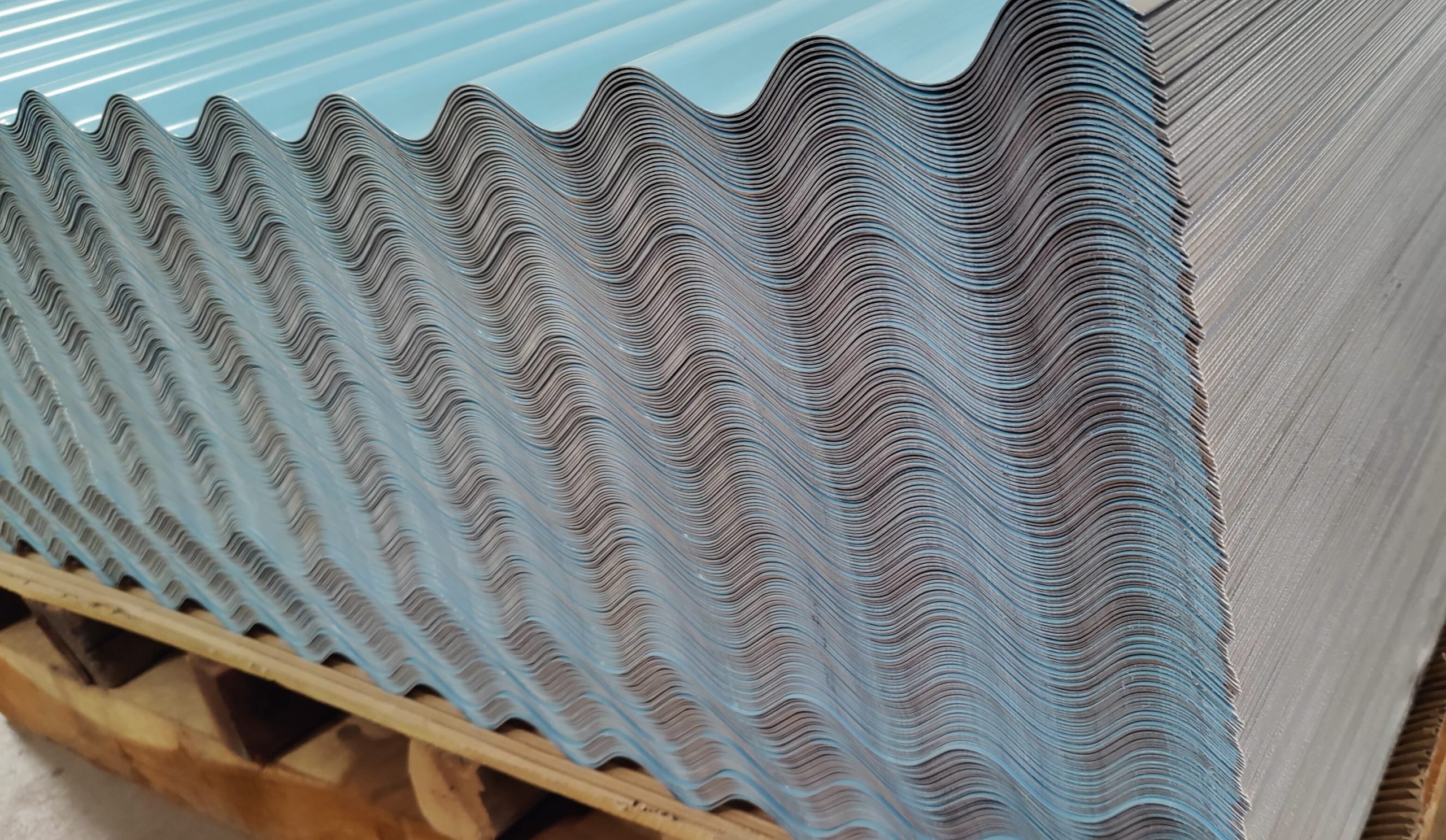

Aluminium cladding with stucco finish
features of aluminium cladding:
- Extremely sturdy
- Highly elastic
- Withstands very high temperature
- Very sustainable
- Lightweight and Durable
- Versatile and easy to maintin
IS aluminium cladding eco-friendly?
Thanks to its nature of recyclability, Aluminum cladding is totally eco-friendly and it reduces the amount of material that gets dumped into landfills. Hence, aluminum cladding reduces the carbon footprint.
Aluminium cladding with PSMR specifications
Few applications of Aluminium Cladding include Roofing, Cold and Hot Pipeline Insulation, Cooling Towers - Insulation, Interior Ceilings, cold Storage, Food Storage Facilities, Food processing centres, Rolling Shutters
Segments using Aluminium Cladding are Oil refinery, Petrochemical Plants, Commercial and HVAC, LNG & Power, Acoustics & Thermal Insulation constructions
There are three types in which the classification of the ASTM C1729 aluminium jacketing can be done. These are based on
- type that gives you a definition of the outer walls whether it's bare, plain, or film-coated.
- type where the grade is aluminium alloy or temper
- the class which defines the type of moisture barrier on the inner surface
